Engineered for maximum torque transmission and minimal backlash. We supply top-tier wholesale spiral bevel gearbox configurations for OEM integrators, heavy machinery, and precision automation systems globally.
Definition: A spiral bevel gearbox is a specialized right-angle mechanical power transmission device utilizing curved, oblique teeth. It is designed to change the axis of rotation by 90 degrees while maintaining high mechanical efficiency (up to 98%) and smooth, quiet operation compared to straight bevel gears.
Industrial Application: Critical for continuous-duty applications where space is limited, and high torque output is required. Widely deployed in automated packaging lines, multi-axis robotics, robust material handling systems, and as a core component when sourcing a reliable wholesale helical geared motor setup for synchronized drive systems.
Tailored to meet rigorous OEM demands and complex integration environments.

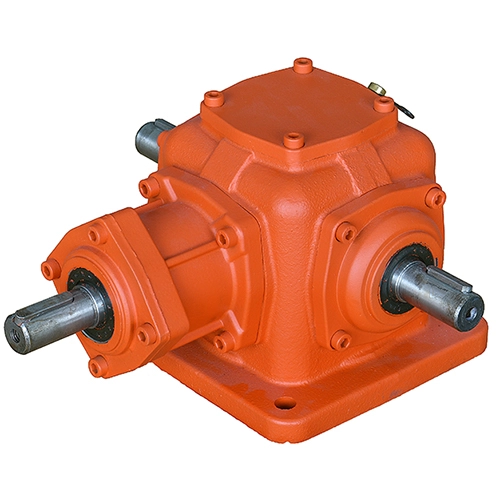

Our industrial-grade spiral bevel gearboxes are manufactured using premium FC250 cast iron and advanced Gleason grinding techniques. Designed for continuous S1 duty cycles, they deliver exceptional torque density, minimal thermal expansion, and strictly controlled backlash for high-precision OEM applications.
| Parameter | Specification Range |
|---|---|
| Gear Ratios | 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1 |
| Housing Material | High-rigidity Cast Iron (FC250) |
| Lubrication | Synthetic gear oil / Custom options available |
| Input/Output Configurations | 1 Input - 1/2/3 Outputs (Cross shaft capable) |
Automated Packaging OEM
Munich, Germany
"We shifted to their spiral bevel gearboxes for our high-speed carton erecting machines. The backlash consistency over millions of cycles has significantly reduced our maintenance callbacks."
Material Handling Solutions
Ohio, USA
"Integrating their 90-degree gear units into our conveyor lines was seamless. The thermal performance under full load is exceptional, exactly what we need for heavy-duty sourcing."
Robotics & AGV Manufacturer
Osaka, Japan
"The engineering team was highly responsive in customizing the flange dimensions to fit our specific servo motors. Outstanding OEM partner for transmission components."
Essential information for B2B procurement and engineering evaluation.
For standard models, we support low MOQ (1-5 units) for prototype testing. For custom shaft or ratio configurations, the typical MOQ starts at 50 units.
Standard configurations are typically dispatched within 2-3 weeks. Custom OEM orders and large-scale manufacturing batches generally require 4-6 weeks.
Yes, our manufacturing facility is ISO 9001 certified, and our spiral bevel gearboxes comply with CE standards for the European market.
We utilize advanced Gleason gear grinding and precision lapping processes to ensure high meshing accuracy, maintaining a low backlash (often <5 arcmin) even under continuous operation.
Absolutely. We offer customized solutions including stainless steel output shafts, anti-corrosion coatings for marine applications, and food-grade lubricants.
Our gearboxes feature optimized cast iron housings for heat dissipation and premium FKM/Viton oil seals to prevent leakage during high-speed, heavy-duty cycles.
